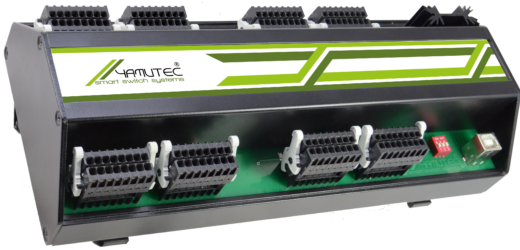

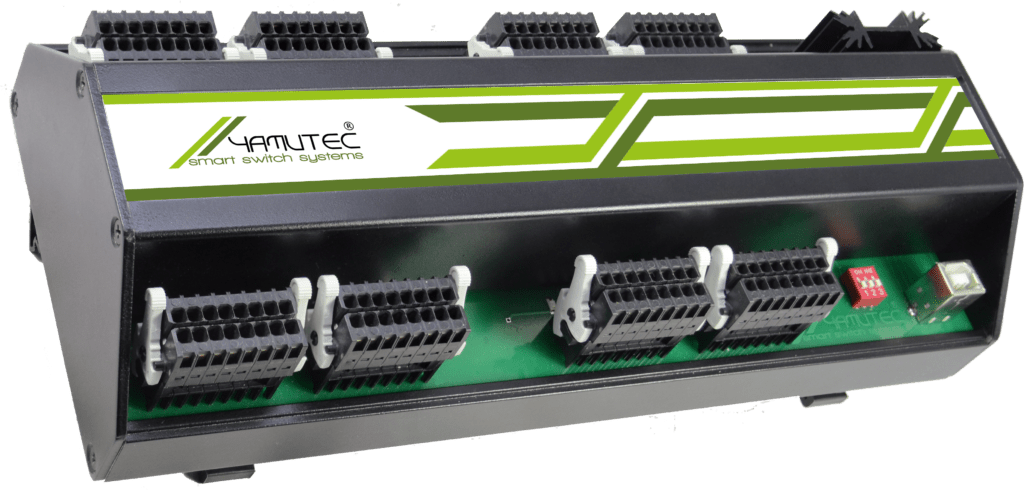

yamutec® USB HYBRID 32_3A module for loads up to 3A
Item no.: 1579627
660,88 € Prices plus statutory VAT | plus shipping and handling
Availability:
In stock!
Delivery in 2-3 working days
Product description
General technical description
Our Yamutec® USB HYBRID32_3A module consists of 32 optocoupler inputs and 32 relay outputs. This allows you to safely capture and convert signals into control commands for the load circuit. These are the Yamutec® USB HYBRID32 modules ideal for automation, measurement and process technology.
The Yamutec® USB hybrid module has 32 PCN relays of the SIP series for the outputs that can switch loads of 3A or 90W. This ensures 100 percent protection against incorrect plugging integrated MULTI CONNECTION SYSTEM with ejectors. It can also be used to code the relays by cutting off the coding lugs.
At the 32 entrances of the Optocouplers were installed in the hybrid module. The semiconductors create galvanic isolation when capturing signals, which additionally protects your IT system. The optocoupler inputs work in a voltage range of 3V to 30V. Our hybrid modules are designed for industrial use for control and regulation and therefore take the EMC and RoHS been developed.
Your advantages with the Yamutec® USB optocoupler module
The 8 optocoupler inputs of our USB module have important properties for signal acquisition. This is how it is possible high switching performance and to reliably record fast input pulses. Since there is no mechanical wear, opto inputs have a long service life. In addition, due to their insensitivity to shock and vibration, they ensure fewer failures in the control and regulation circuit.
Our 32 relay outputs impress with their low switching losses and reliable separation of the control and load circuits. In addition, the relays are insensitive to electromagnetic interference fields and can withstand short-term overloads very well.
Further functions and properties of the hybrid module
To use several identical Yamutec® USB HYBRID32_3A modules, an identification number can be configured for each module using the on-board coding switches. This means clear communication is also possible with several or up to 8 hybrid modules.
You can mount the module on the wall or on a top-hat rail using its devices. Built-in control LEDs allow activities and statuses to be read at any time.
A timeout protection function for the reed relays can be activated using a software command. If a communication problem occurs with the control PC, the timeout automatically opens the outputs. The time period can be set when activating.
Thanks to the Human Interface Device (HID) process, our Yamutec® USB HYBRID32_3A modules no driver installation for commissioning. In addition, communication is more reliable and faster compared to standard modules. With the help of Plug and play technology save Time, since the time-consuming driver installation is no longer necessary.
Software implementation
The USB-HYBRID32_3A modules from Yamutec® enable seamless integration into various widely used programming languages using the included YMLib.dll file. This DLL file opens up a variety of possibilities and makes programming much easier.
Technical data
| Supply voltage | External 7V to 24V DC via pluggable screw terminal or via USB. Setting via jumper. |
| interface | USB 2.0 |
| control LEDs | 5V supply voltage interface activity I/O activity Timout shutdown (only for outputs) Error message |
| Exits | 32 relay outputs, Galvanically isolated via relays Max. switching voltage: 30V AC / 30V DC Max. switching current: 1A AC / 1A DC Max. transport current: 1A AC / 1A DC Max. switching power: 90W Switching time: < 1 ms |
| Entrances | 32 optocoupler inputs 3V – 30V AC/DC signal voltage Isolation voltage: 2.5KV AC for 1 minute Maximum input current: 10mA |
| connector | 2 ROW MULTI CONNECTION SYSTEM Universal connection for all types of conductors Locking the plug connection Codeable and 100 % protected against mismating by cutting off the coding lugs |
| Connection data | Solid conductor 0.08 … 1.5 mm² / 28 … 16 AWG Fine-wire conductor 0.08 … 1.5 mm² / 28 … 16 AWG Fine-wire conductor; with wire end sleeve with plastic collar 0.25 ... 1 mm² Fine-wire conductor; with wire end sleeve without plastic collar 0.25 ... 1 mm² Stripping length 6 … 7 mm / 0.24 … 0.28 inch |
| dimension | 253mm x 105mm x 74.5mm (L x W x H) |
| Weight | 490g |
Downloads
| Manual | Product description |
| Source code examples | VB6, VB.NET, C#, .NET6, LabVIEW and Python |
| Source code manual | .NET6, python for Linux & Windows |
| API developer tool | YMLib.dll (64-bit | 32-bit | x86) library file for Windows |
| API reference guide | YMLIB API References USB |
| Supported operating system | Linux Windows |
scope of delivery
| module | USB-HYBRID32_3A module |
| Accesories | Coding lugs |
| Tool | Operating tool |
| Disk | CD with product description, manuals, data sheet & source code examples |
| Connection cable | USB 2.0 A plug to B plug |
